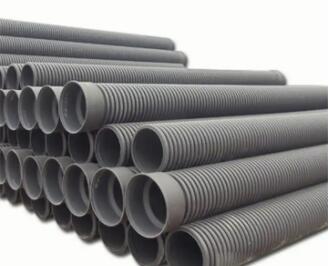

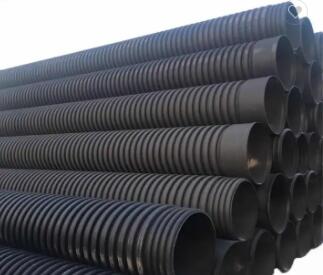

PVC Double Wall Corrugated Pipe

PVC-U double-wall corrugated pipe

Specification

Material	PVC
Length	6m or 8m or customize
Standard	ISO 4427:1996; BS 6920
Processing Service	Cutting
Item	PVC Cable Casing
Color	White
Longitudinal Reversion, % (110℃)	≤3
Oxidation Induction Time, min(200℃)	≥20
Extension Rate at Break, %	≥350
Certification	ISO Certificate
Connection	Gasket

DN/ID	dim.min	emin	el.min	A.min
200	198	1.5	1.1	54
300	296	2	1.7	65
400	394	2.5	2.3	74
500	492	3	3	85
600	588	3.5	3.5	96
800	785	4.5	4.5	118
1000	985	5	5	140
1200	1185	5	5	162

Advantage

1. High ring stiffness, wall use of reasonable hollow ring structure, greatly improving the pipe's ring stiffness.
2. Fluid resistance small, inside sleek, friction less than concrete
3. Connection sealing well, using elastic seal socket connection, Sealing better than the metal tube and concrete pipe
4. Bear acid alkali and Sault corrosion
5. Easy to construction, light weight, enough length, low requirement for environment, lower project cost
6. Long service life

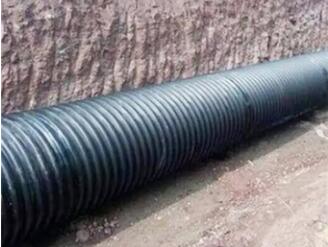

Application

1.Sewer and drainage
2.Frontage drains for terrace and other residential units in housing schemes
3.Perimeter drains for commercial, industrial units and individual factories
4.As collector drains in subsoil system in road, highway, open field, stadium, retaining wall or parking space
5.As collector drains in subsoil system, sewerage treatment plant sludge drying bed under drains


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
